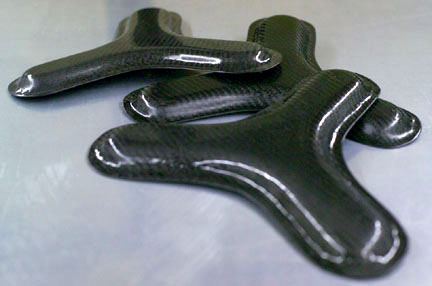

Yoke-style mirror cell (YOKE-010 shown) is
~11" OD x 0.56" thick and weigh just under 0.3 lbs.
each. |
|
|

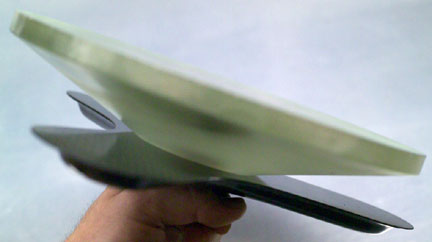

These mirror cells are designed to work with conical-shaped
optics. |
|
|
|
They are engineered for stiffness, low CTE and to
allow the greatest amount of air flow to pass by the mirror. |
|
|
|
These yoke cells are available in a variety of sizes
and can be purchased uncoated
or coated with UV protectant. |
|
|
|
The yokes can be purchased as a kit
with inserts or a finished yoke with inserts already bonded into
place (for push/pull collimation
use). |
