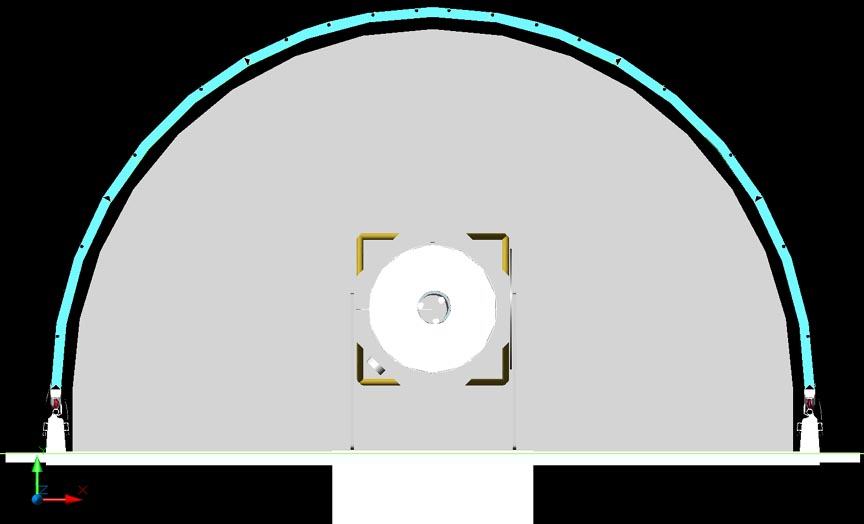

The gap between the main arch and the matching arch
of the control room, very light gray, can be easily seen in this
head on view of the south/observatory end of the enclosure. The
gap as drawn above is roughly 3.5" on both sides, for a
control room arch diameter 7" smaller than the inside of
the arch. The outside diameter of the main arch is 228"
in diameter with an inner diameter of 222". The control
room is therefore an outside diameter of 215". The telescope
is pointing directly at the viewer. |
|
|
|
|
This is a vew from the opposite end, facing south,
looking at the north end of the enclosure. The narrow, medium
gray path coming off the central back door of the control room
is a sidewalk. The door opening is 32" wide and 80"
tall, a standard door opening specification. |
|
|
