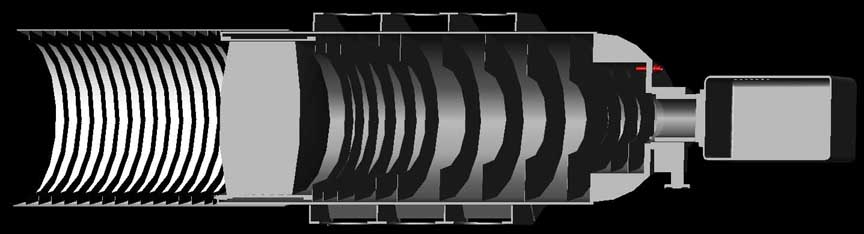

The complete telescope has been sliced so that the declination plate is on the other side of the half OTA tube.

The long, four element lens can be seen easily, as well as the numerous internal bafflings. Note they are optimized for the light cone of this particular camera.


OTA only

OTA with rings

Rings only
