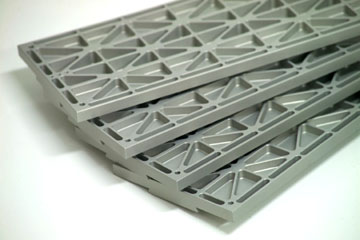

Solid and Pocketed Dovetail Plates: 20.0" x 7.0" x 0.815"

click on image above to see larger view

The Dream dovetail plate works with many existing dovetail systems on the market, like the Paramount ME's VersaPlate. The unique attribute about this plate is that its bolt pattern, onto the telescope, is much wider, 6.0" on centers, and the plate is thicker than most dovetail plates. The wider bolt pattern and thicker plate both contribute to greater stiffness in the system. As telescope size rises, so should the accessories used to secure them.

Plates are machined from 6061-T6 aluminum, then hard anodize coated.

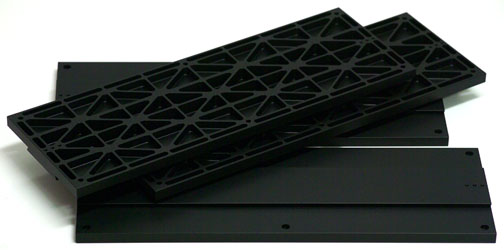

 This large dovetail is offered in both solid and pocketed versions. The solid version ($355) will weigh 9.0 lbs, while the pocketed version ($495) will weigh 4.1 lbs. We currently have units in stock.

Two pocketed 20" Dream dovetail plates are being used per instrument by one company for their f5 Cassegrain.



click on image above to see larger view

16"

20"

24"

32"


pricing, availability and specifications subject to change without notice
