All advanced composite work is done in-house. The

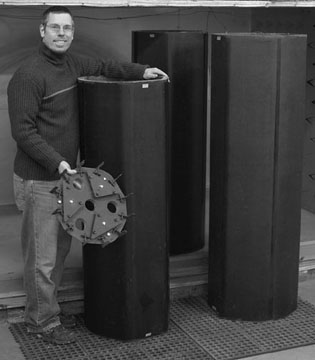

image to the right shows three 20" OD hybrid profile tubes
designed for ~16"/40cm optical systems. The tubes
shown have two flat sides, for mounting, which eliminates the
need, additional flexure and mass associated with mounting rings.
Two tubes are 57" long and the other is 65.5" long.
The 57" long tubes are used for telescopes like the Dream 16" f3.75 Astrograph.
All three use Carbon Fiber skinned Sandwich
Core (CFSC), with a wall thickness
of ~1.0". This is what Dream has specialized in since its
inception in 2003; meticulous carbon fiber work for the much
more demanding opto-mechanical industry, especially the use of
thick sandwich core, for the ultimate in high stiffness and low
mass. |
|
Held in the foreground is a 16.5" (physical OD)
mirror support that is made from carbon fiber and CFSC. Axial
and lateral supports act independantly, which prevents an over-constrained
condition (distortion of the optical figure). Lateral supports
hold the optic at its CG (Center of Gravity). |
|
If you are frustrated by conventional tube flexure,
request Dream's thick-walled CFSC
tubes, mirror supports or complete telescopes. High modulus,
low CTE structures and sub structures help maintain optical alignment,
optical spacing and support optics with far lower displacement
(distortion). All of these combine to provide the ultimate in
instrument performance. |
|
The carbon fiber mirror supports and structures that
Dream produces in-house have more than a decade of empirical
testing behind them. As well as additional in-house expertise
with designing, engineering, casting, annealing and processing
cellular mirrors through our second company Dream
Cellular, LLC. All under one roof. |
|
|
|
|
"Hello
Shane,
I can't think of anyone that has delved as deeply into the mechanics
of telescopes as you have." |
|
Dream customer |
|
rocketry, IRAC, Spaceport
America Cup, soundingrocket.org |
|
|
|
|
Our largest composite oven is 12 feet wide, 6 feet
deep and 6 feet high. |
 |
|
|
Dream produces CFSC
technology products in-house and uses the thickest
core feasible. |
|
The tube to the left has a wall thickness of ~1.0"
and weighs less than 24 lbs. It is shown with ~355 lbs of load
on it while it spans a gap of 52.0". |
|
|
If you want to offer your program
and/or clients a product with the ultimate in performance, contact Dream today to learn more. |
 |
|
|
