Dream Astrograph - 16"

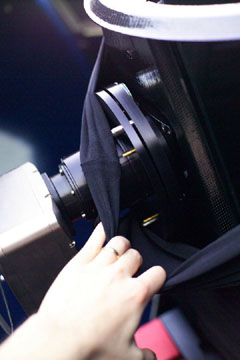

Shown left is the PDF focuser under the top OTA shroud. This helps keep the inner mechanisms clean.

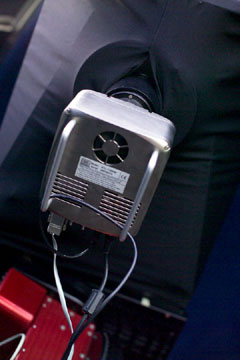

The new, custom Dream PDF focuser can be seen here




Click here to see the 16" inside a dome.

The production OTA will use a triangular-shaped collimation plate that mates OTA to PDF focuser, thus allowing tip/tilt adjustment.

The push/pull adjustments (not shown) are outside the diameter of the PDF focuser for easy acess and allow for much finer adjustment.

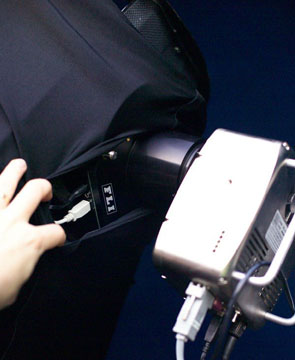

Cabling from the PDF focuser, USB and power, are run underneath the shroud.


Click here to see latest test images.






To see photos and information about the light shrouds, please click here.
