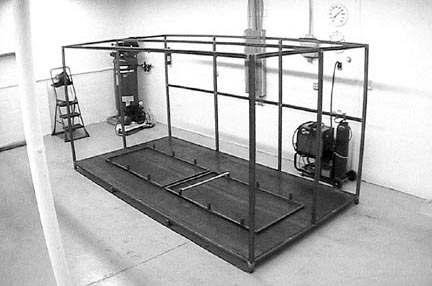

Steel framework during custom fabrication. |
As currently shown the oven has an interior space
of 6 feet tall, 6 feet deep and 12 feet wide. |
One of the six heating elements can be seen on its
mounting framework, on the floor of the oven. Each is 1680 watts,
for a total of 10,080 watts for all six of the 32" long
heating elements. |
The oven can either work as one large oven or a vertical
divider can be placed in the center to use one or both of the
two zones separately. Each zone will use its own temperature
probe, temperature controller and solid state relay to control
temperatures. |
All functions, including data collection/graphing,
are performed by a computer that controls the oven. |
|
|
|
