Dream Astrograph - 16" - custom 5.5" minor axis elliptical secondary

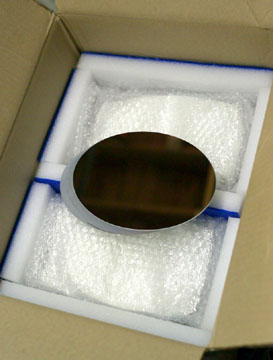

Shown left are three 5.5" minor axis secondaries for the 16" f3.75 Dream Astrograph. Two are still wrapped, below the unwrapped unit sitting on top.

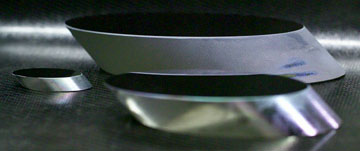

To show scale, shown right are three elliptical secondaries: 1.5", 3.5" and the 5.5" in the background.

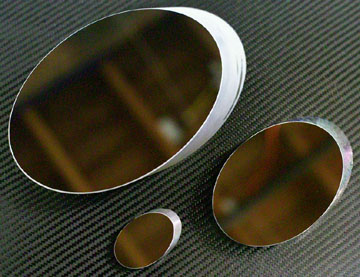

Shown left are three elliptical secondaries: 1.5", 3.5" and the 5.5" in the background.

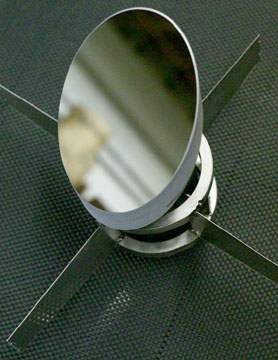

Shown right is the raw carbon fiber and stainless steel secondary assembly with the 5.5" minor axis secondary mirror attached to the carbon fiber hub.




Assembled 16" Dream Astrograph


16"

20"

24"

32"
