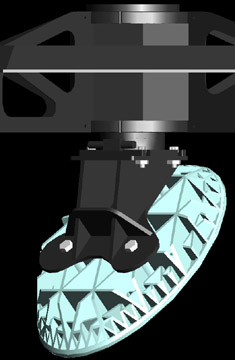

The spider assembly consists of stainless steel vanes,
lugs and central rings. All fasteners are stainless steel. The
central hub, plates, cell and ribbing are carbon fiber/high temp
epoxy. |
|

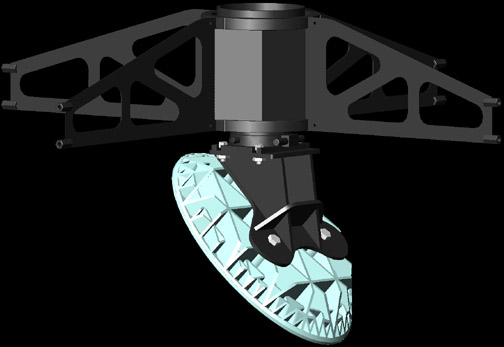

The upper rings and carbon fiber central hub allow
for gross placement of the secondary mirror in: tip/tilt, rotation,
axial and lateral positioning. |
|
Once the secondary mirror is roughly in place, rotation
can be fine tuned using the rotation assembly. This assembly
sits just below the main spider hub and just above the main secondary
support ribbing. The 24" Dream Astrograph uses a micrometer
that allows rotation as small as 1 arc minute (1/60th of a degree).
This rotation contol is independent of all other adjustments
and greatly improves collimation control and ease of use. |
The 16" Dream Astrograph uses a similar rotation
assembly but without the micrometer adjustment. Either can allow
free rotation if neccesary. |
|

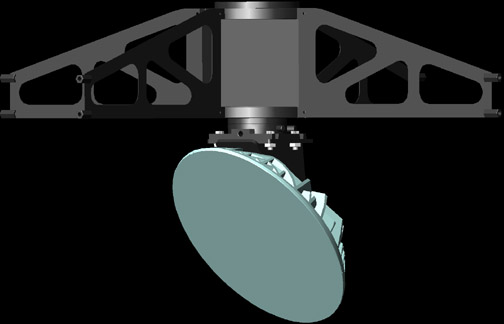

The secondary mirror's fine tip/tilt is accomplished
through the two exposed hex head bolts. |
Not shown in the renderings is a flat black cover
that will block the direct view the focal plane has on some of
the shiny stainless steel hardware. |
